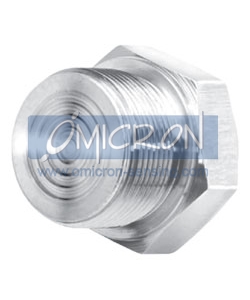

SSF : Screwed Flush Diaphragm Seal |
|
|
 |
Type |
: Screwed Flush |
|
Range |
: 0 to 700 bar |
|
Connection |
: Threaded |
|
Fill Fluid |
: Silicon / Fluorolube |
|
Wetted Parts |
: SS316L / Exotic |
|
Non Wetted Parts |
: SS316L / Exotic |
|
| |
| Special Features |
|
|
One Piece Construction |
|
No Bolts/Gasket |
|
Flush Diaphragm |
|
| |
| Applications |
|
| Diaphragm seals are provided in the instruments like pressure gauges, switches, transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous and sedimented nature and to avoid clogging and solidification. These seals are used in applications where the process media & pulsation may adversely affect gauge life typically used in spray painting, waste water treatment & chlorination plant etc. |
|
| |
| Specifications |
|
| Standard Version : |
|
Pressure Range |
: 4 kg/cm2 to 250 kg/cm21 |
|
Process Temperature |
: -40°C to 200°C or as per fill fluid |
|
Instrument Connection |
: 1/4” BSP (F) |
|
Process Connection |
: 1/4” BSP (M) |
|
| |
|
Diaphragm |
: AISI 316LSS |
|
Chamber |
: AISI 316SS |
|
Fill Fluid |
: Silicon Oil - DC 200 |
|
|
|
|
|
| |
|
