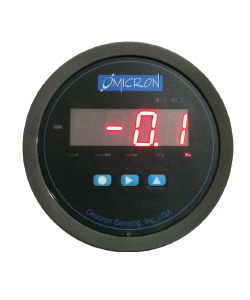

DPG : Low Cost Digital Differential Pressure Gauge |
|
|
| Special Features |
|
 |
Mounts in Industry Standard Holes |
|
5 Different Units in 1 Gauge |
|
Die Cast Aluminium Housing |
|
Indicates Negative, Positive or Differential Pressure |
|
High Accuracy MEMS Sensor provides 1% Accuracy |
|
Resists Shocks, Vibration and Over Pressure |
|
OEM Branding Options Available |
|
| |
| Applications |
|
| The DPG Low Cost Digital Differential Pressure Gauge Is The Industry Standard To Replace Analog Differential Gauges with Pointers. It can Measure Fan and Blower Pressures, Air Velocity, Furnace Draft, Medical Instruments and Pressure Drop across Orifice Plates. |
|
| |
| Specifications |
|
|
Pressure Ranges |
: |
Various Ranges Upto 10 kPa |
|
Pressure Limits |
: |
-20”Hg to 15 PSI (Available upto 25 PSI for Ranges above 5kPa) |
|
Media Compatability |
: |
Air and Non-Combustible, Compatible Gases |
|
Accuracy |
: |
±1% of F.S (For Ranges over 0.25“wc) |
|
|
: |
±2% of F.S (For Ranges < 0.25“wc) |
|
Power Supply |
: |
15-28V AC/DC; 85 - 265V AC |
|
Temperature Ranges |
: |
-20°F to 140°F (-7°C to 60°C) |
|
Mounting Orientation |
: |
Diaphragm in Vertical / Horizontal Position |
|
Display |
: |
3 1/2 Digit 0.8” Red LED |
|
Analog
Output (Optional) |
: |
0 - 10V DC / 4 - 20mA |
|
Relay
Contacts (Optional) |
: |
2 SPST, 1A @ 30VDC / 0.5A @ 125VAC |
|
Housing Material |
: |
Die Cast Aluminium Case with Acrylic Plate |
|
Process Connection |
: |
1/8” NPT (F) x 4 |
|
Weight |
: |
340 grams |
|
Protection |
: |
IP65 |
|
Function Keys |
: |
Zero, Calibrate, Units, Relay Setting |
|
Accessories |
: |
Two 1/8” NPT Barbed Fittings With Plugs And Three Mounting Screws |
|
|
|
|
|
| |
|
