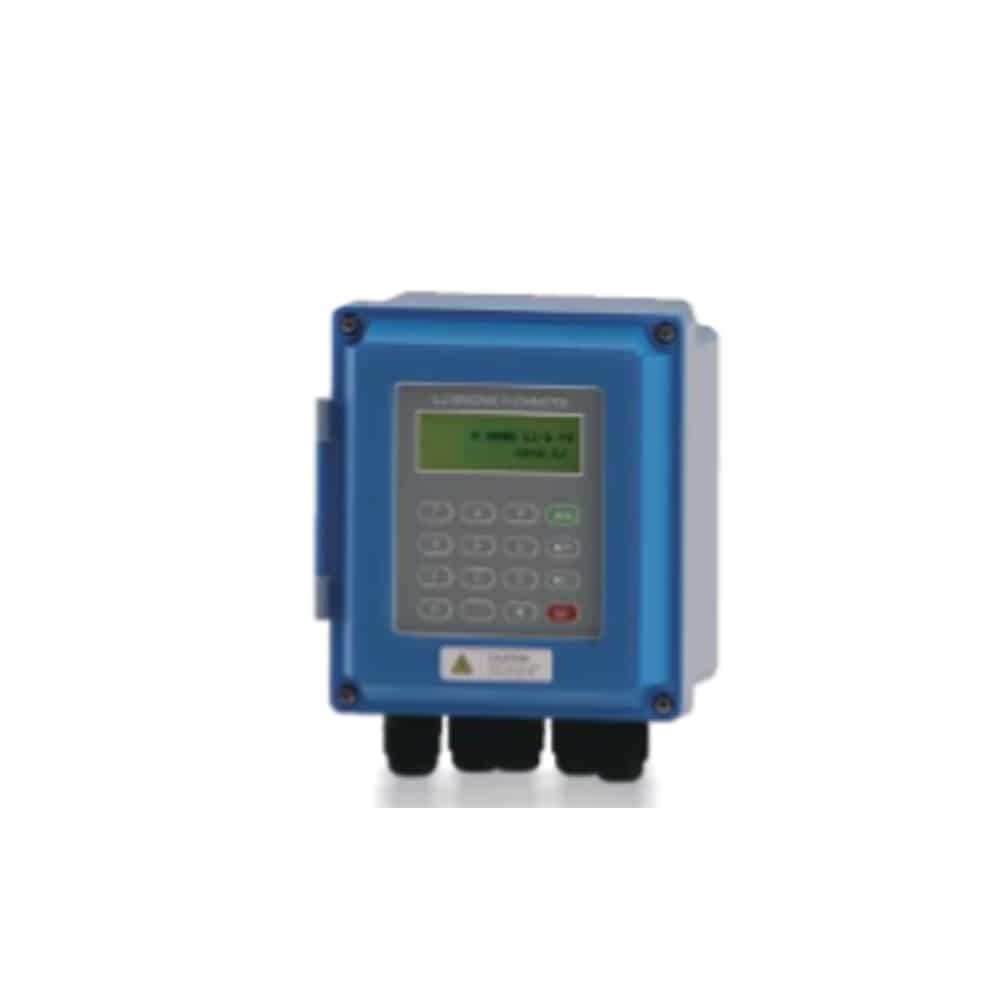

USF300 – Ultrasonic Flowmeter
|
Description
Special Features:
- Measurement accuracy ±0.5%
- Transmitter protection class IP67, Transducer protection class IP68.
- Wide measurement range, pipe size from DN15mm to DN6000mm.
Introduction:
USF300 flowmeter can be virtually applied to a wide range of long-term online measurements. Transmitter protection class IP67, transducer protection class IP68. A variety of liquid applications can be accommodated: ultra-pure liquids, portable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent. etc.
Additional information
| Transmitter | — |
|---|---|
| Principle | : Transit-Time Ultrasonic Flowmeter |
| Accuracy | : ±0.5% |
| Display | : 2 X 20 character LCD with backlight |
| Signal Output | : 4~20mA output 1 way OCT pulse output (Pulse width ~1000ms, Default is 200ms) 1 Relay output |
| Data Interface | : Isolated RS485 Modbus RTU serial interface |
| Recommended Cable | : Twisted pair cable, generally, the length should be under 50 meters for analog outputs; For Modbus RS485, transmission distance can be upto 800m |
| Pipe Installation Condition | — |
| Material | : Steel, Stainless Steel. Cast Iron, Copper, Cement Pipe, PVC, Aluminium, Glass Steel Product, Liner is allowed |
| Diameter | : 15~6000mm |
| Straight Pipe | : Transducer Installation should be satisfied: Upstream 10D, Downstream 5D, 30D from the pump |
| Measuring Medium | — |
| Type of Liquid | : Single liquid can transit sound wave, Such as Water (Hot water, Chilled water, City water, Sea water Waste water, etc.); Sewage with small particle content; Oil (Crude oil, Lubricating oil, Diesel oil,Fuel oil, etc.); Chemicals(Alcohol,etc) ; Ultra-Pure liquids; Plant effluent; Beverage; etc. |
| Turbidity | : No more than 10000ppm and minimal bubbles |
| Velocity Range | : 1~7m/s (Bi-directional) |
| Ambient Conditions | — |
| Temperature | : Transmitter : -20~60OC Flow Transducer : -30~160OC |
| Humidity | : Transmitter : 85%RH Flow Transducer : Can measure under water, water depth < |
| Power Supply | : DC8~36V or AC85~264V(Optional) |
| Power Consumption | : 3W |
| Dimension | : 132*150*85 mm (Transmitter) |
