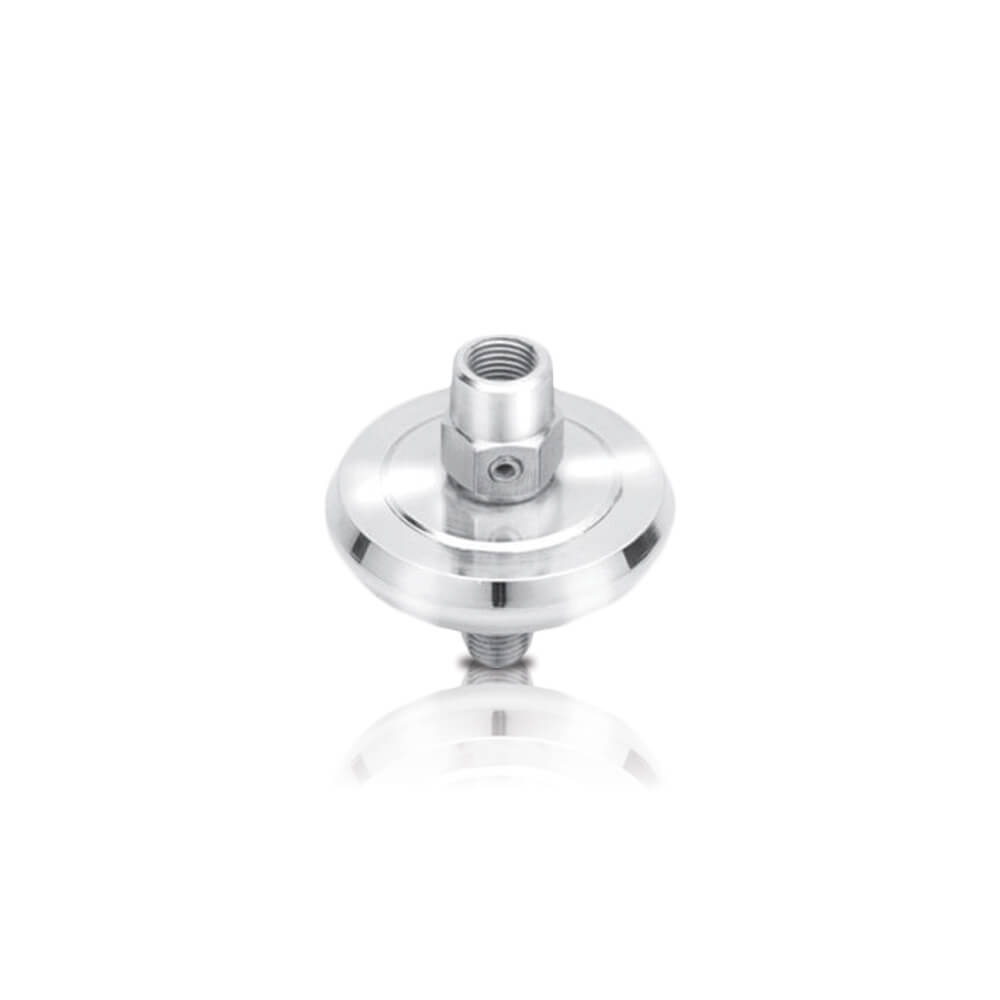

SCS : Compact Diaphragm Seal

	Model	: SCS
	Type	: Compact Seal
	Range	: -1 to 400 bar
	Connection	: Threaded
	Fill Fluid	: Silicon / Fluorolube
	Wetted Parts	: SS316L / Exotic
	Non Wetted Parts	: SS316
	Download	: Download PDF

Description
Additional information

Description

Special Features :

	Compact Design
	Single Piece Construction
	Ideal For General Purpose Application
	Low Cost Solution

Applications :

Diaphragm seals are provided in the instruments like pressure gauges, switches, transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous and sedimented nature and to avoid clogging and solidification.

Additional information

Standard Version	: Suitable for NS upto 63mm
Process temperature	: – 40°C to 200°C or as per fill fluid
Diaphragm	: AISI 316LSS
Range	: -1 kg/cm2 to 21 kg/cm2
Body	: AISI 316SS
Fill Fluid	: Silicon Oil – DC 200
Top Chamber	: AISI 304 SS, Bayonet Type
Bottom Chamber	: AISI 316L SS
Instrument Connection	: AISI 316L SS
Process Connection	: AISI 304 SS
Filling Fluid	: Silicon Oil – DC 200
