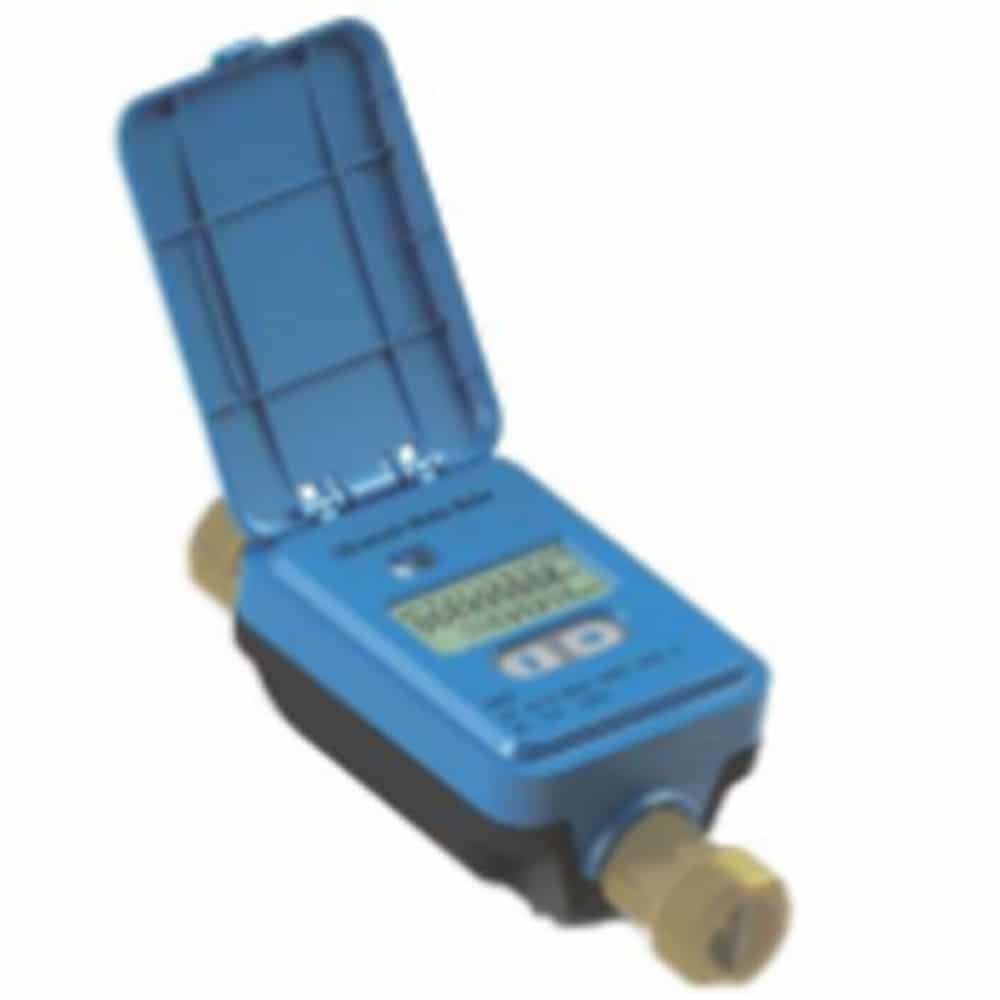

RM600 : Residential Ultrasonic Water Meter
|
||||||
Description
Description :
The highly integrated RM600 residential ultrasonic water meter is designed and manufactured strictly according to GB/T778.1-2007, ISO4064-2005, JJG162-2009, it is a new generation of all-electronic water meter with high measurement range ratio, ultra-low starting flow rate, and various communication interfaces, and it is an optimal choice for water flow measurement on small pipe lines.
Applications :
- High Measurement Range Ratio
- Ultra-low Starting Flow Rate
- Diversified Communication
- Stable and Reliable & Long-term Life
- Data Security
- Flow Dual-display & Easy Operation
Additional information
| Max Operating Pressure | : 1.6 MPa |
|---|---|
| Storage Temperature | : -40OC to 70OC |
| Operating Conditions | : -25OC ~ 55OC, ≤100% RH; non-condensing |
| Resolution Ratio of Display | : Total flow 0.000001 m3, Instantaneous flow 0.00001 m3/h |
| Display Range | : 0 – 999999999 m3 |
| Communication | : M-BUS/ RS485(optional) |
| Protection | : IP68 |
