PGMB

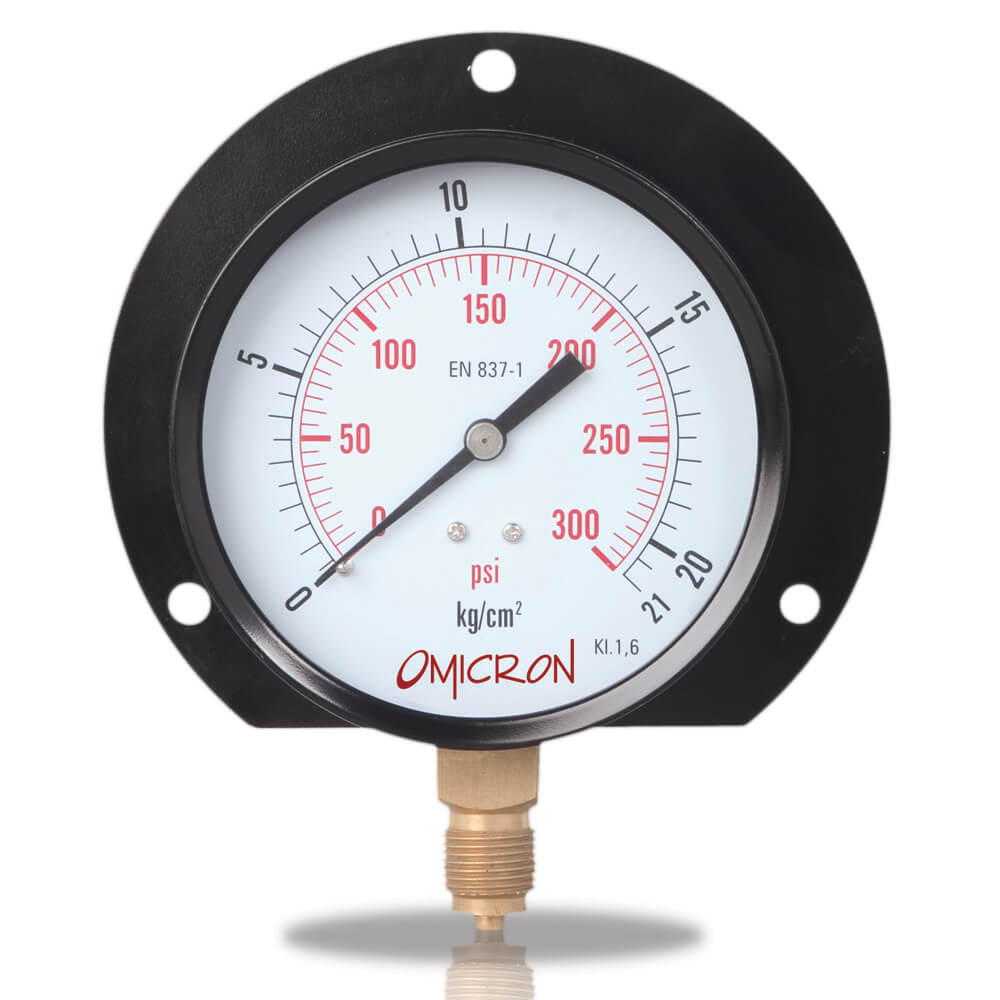

PGMB : Mild Steel Pressure Gauge with Brass Internals Pressure Gauge

Model : PGMB
Type : Utility
Dial Size : 1.5″ – 12″
Range : -760mmHg to 1000 bar
Wetted Parts : Copper Alloy
Case : Powder Coated MS
Download pdf
Download

Description

Special Features :
  • Economic Version.
  • General Purpose Application.
  • Accuracy up to ±1.0%.
Applications :

Mainly for Water / Air Application, Pharmaceutical Industries, petrochemical industries, Power, Cement, Sugar, Food, Beverages, Paper and Pulp Industries and Allied Process Industries.



Glycerine Filled Version (Option LG)
Accuracy : ±1.6% of F.S. for 100mm, 150mm and 250mm
±2.0% of F.S. for 50, 63mm
±2.5% of F.S. for 40mm
Ambient temperature : Maximum 65 oC
Process temperature : +15 oC / 65 oC
Window : Plexi Glass
Dampening Liquids : Glycerine 98% (others available as option)
Other Features : Refer Specification of Standard Version

Additional information

Standard Version

: 40mm, 50mm, 63mm, 100mm, 150mm, 250mm
Accuracy

: ±1.6% of F.S. for 100mm, 150mm and 250mm
±2.0% of F.S. for 50mm, 63mm
±2.5% of F.S. for 40mm
Ambient temperature

: – 25 °C to + 65 °C
Process temperature

: Max 180 °C
Operating pressure

: 75% of the Scale Value
Over pressure limit

: 30% for Pressure Ranges upto 600 kg / cm2
15% for Pressure Ranges above 600 kg / cm2
Case

: Mild Steel, Black powder coated
Ring

: Mild Steel, Black powder coated
Bourdon

: Copper Alloy
Socket

: Copper Alloy
Movement

: Copper Alloy
Joints

: Silver Brazing / Alloy Brazing
Protection

: IP 65
Dial

: Aluminium, black graduation on white background
Pointer

: Aluminium, black coloured Micrometer zero adjustable
Window

: Sheet Glass
Blow off Disc

: Neoprene
Gasket

: Neoprene
