PD6800

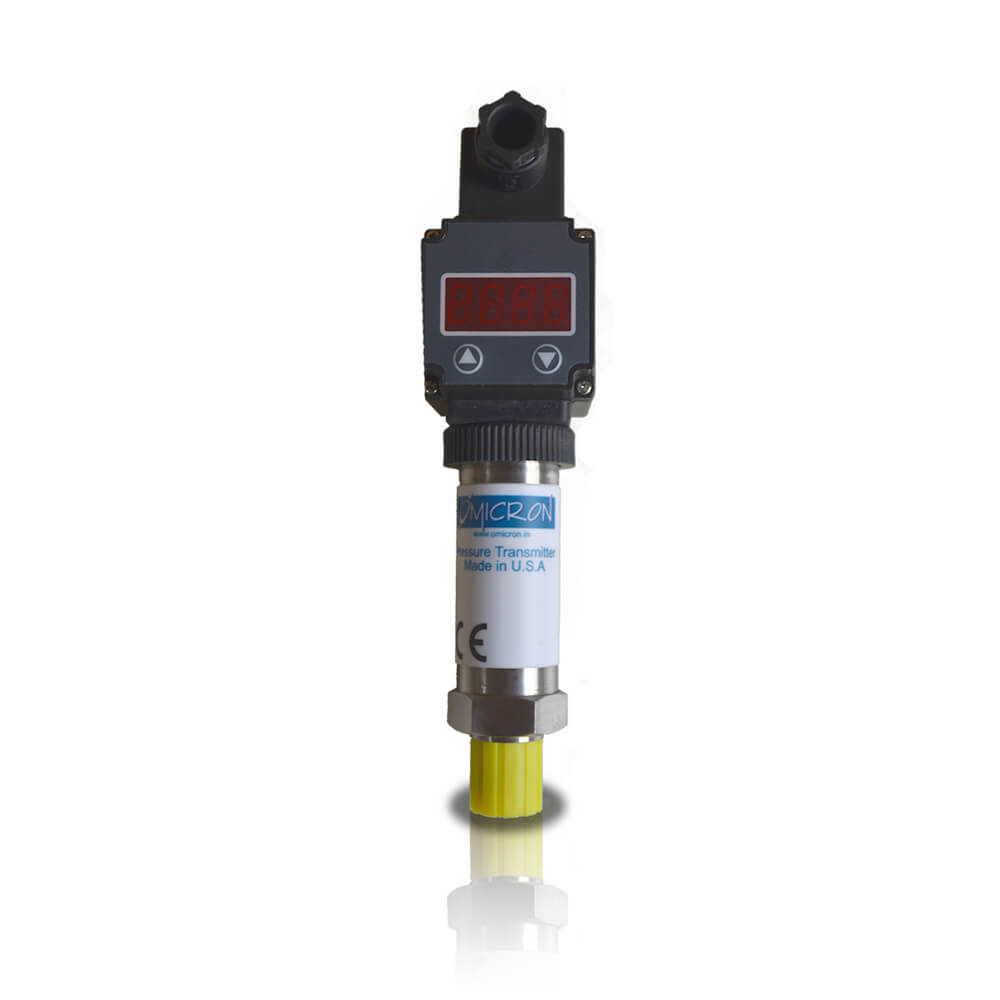

PD6800 : OEM Pressure Transmitter With Display

Model : PD6800
Type : With Display
Range : -1 to 2000 bar
Output : 4 – 20mA, 1 to 5V
Accuracy : ± 0.25% of F.S
Temperature Limits : -25 to 85ºC
Over Pressure : 2X
Download pdf
Download

Description

PD68 Series (LED local display) Adopting global advanced electron ceramic technology, no any medium liquid in the sensor chip, has the character of overload resistance, high impact resistance, excellent linearity, lasting high stability, wide temperature range, corrosion-proof, etc.

Applications :

This series can be applied in hydraulic machinery, Building Automation systems, constant pressure water supply, machine loading fluid in automatization fields, pressure measure and control.

Additional information

Pressure range

: 0~0.1MPa~200MPa
Over load

: 150%FS
Burst pressure

: 300%FS
Output

: 4-20mA
Power supply

: 12-36VDC
Response time

: <5ms
Combine error

: 0.25%FS; 0.5% FSO
(Including Linearity, Repeatability & Hysteresis)
Repeatability

: s= + 0.2%FSO
Long term stability

: s= ± 0.2%FS/year
Pressure connection

: M20x 1.5, G1/2, G1/4, 1/2NPT (customer tailor)
Operating temperature

: -20^-80^
Temperature compensation

: -2O°C~65°C
Electrical connector

: Hirschman DIN43650 IP65
