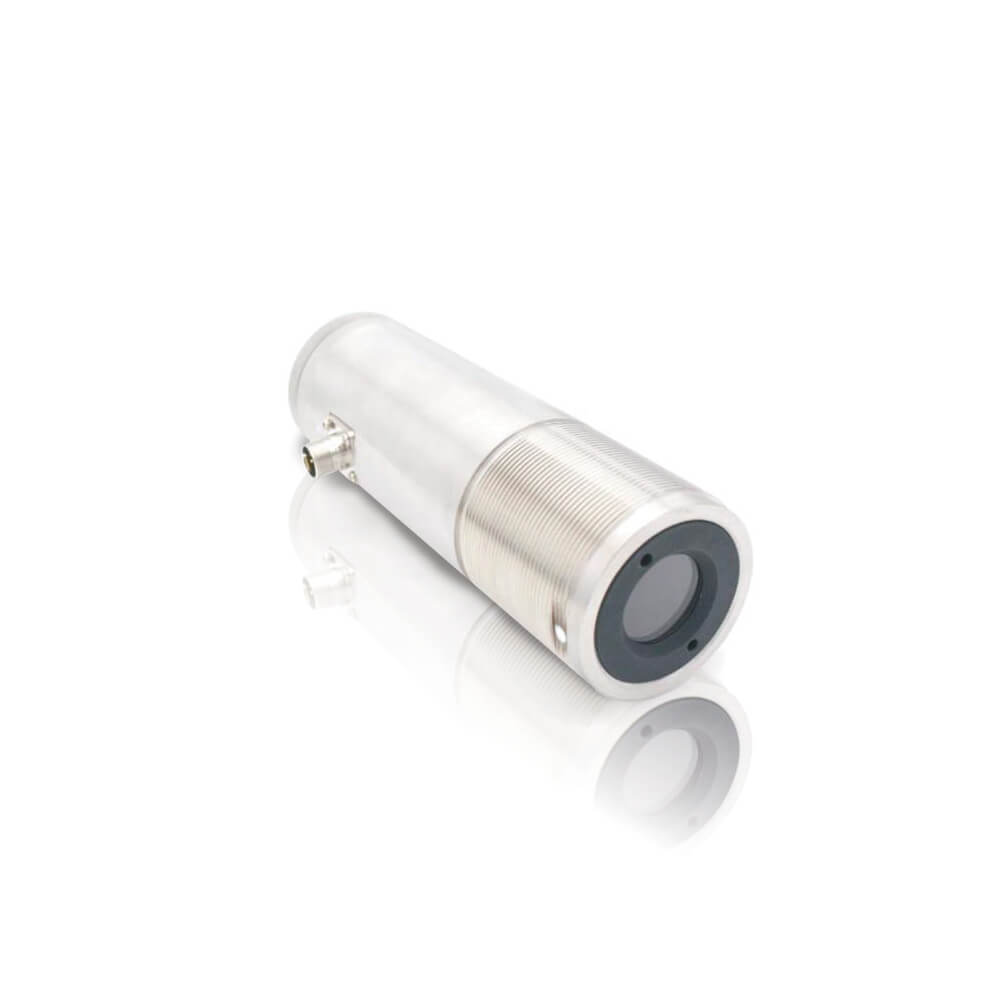

OS137 : Infrared Temperature Transmitter
Performance :
![]() |
Spectral Range | : 1.6um/1um |
![]() ![]() |
Accuracy @ 25ºC | : ±0.5% or 1°C |
![]() |
Repeatability @ 25ºC | : ±0.5% or 5°C |
![]() |
ResponseTime | : 10ms(95%) |
![]() |
Emissivity | : 0.10-1.00 |
![]() |
Analog Output | : 4-20mA with 750 ohm Max. load |
![]() |
Power | : 24VDC -5% |
![]() |
Sight | : Laser Sighting(Level 2 laser, the maximum output power1mW,650nm |
![]() |
Operating Ambient Temperature |
: OperatingAmbientTemperature |
![]() |
StorageTemperature | : 20 to 70ºC |
![]() |
Protection class | : IP65 |
![]() |
Weight (sensor only) | : 0.9kg |
Description
OS137 using non-contact temperature measurement device.Provide 4-20mA current output it can be easily installed in a variety of applications, especially suitable for long distances, install more noise industrial environments.The probe uses a stainless steel shell, in the industrial.
