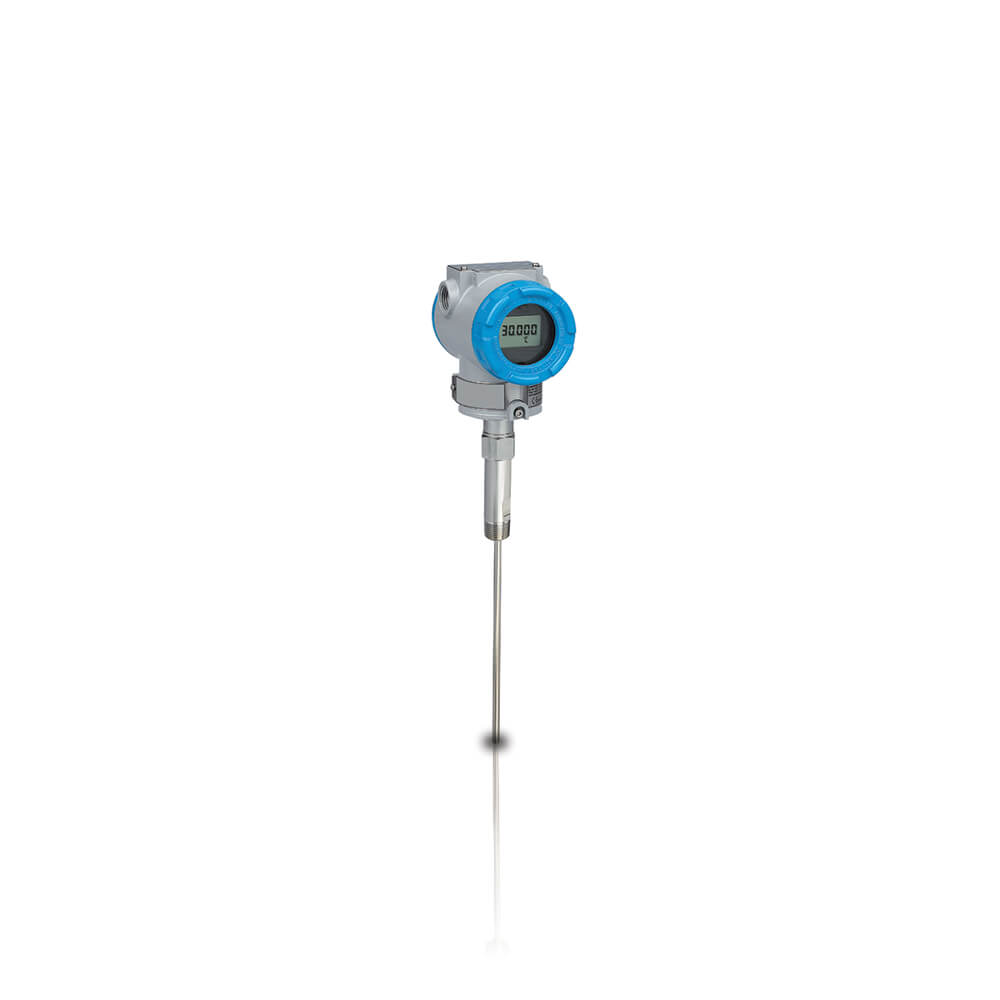

APT2000 : SMART Temperature Transmitter
|
Description
Special Features
 |
Programmable Input (Pt-100 / Thermocouple / Variable Resistance) |
|
Linear Signal Output |
|
Current Loop Powered. |
|
LCD Display with Bargraph |
|
High Performance; High Reliability |
Applications :
Food & beverage, pharmaceutical, chemical & petrochemical industries, conventional & nuclear plants, pumps, presses, turbines, hydro-cleaning machines, diesel engines & refrigerating plants.
Additional information
| Input | : Thermocouple / RTD / mV |
|---|---|
| Output | : 4 – 20 mA, Super Imposed HART |
| Accuracy | : ±0.075% of the calibrated span |
| Operating Temp. | : -40°C to 85°C |
| Calibration | : Settable via HART Protocol / Onboard Buttons |
| Display Range | : -19999 to 99999 |
| Housing | : Diecast Aluminium |
| Power Supply | : 24V DC nominal (10.5 to 45)V DC |
| Load Resistance | : Max. (V Power Supply – 10.5V) / 0.022A |
| Protection | : Intrinsically Safe: Exia II CT4 |
