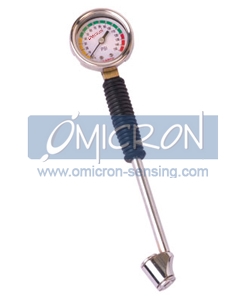

PGTG : Tyre Pressure Gauge |
|
|
 |
Model |
: PGTG |
|
Type |
: Tyre Gauge |
|
Dial Size |
: 2", 2.5" |
|
Range |
: 0 to 100 psi |
|
Wetted Parts |
: Copper Alloy |
|
Case |
: SS304 |
|
| |
| Special Features |
|
|
Stainless Steel Case and Bezel |
|
Rugged Construction |
|
Suitable for Tyre Pressure Measurement |
|
| |
| Applications |
|
| These Gauges are suitable for tyre pressure measurement in auto mobile industries. |
|
| |
| Specifications |
|
| Standard Version: 50mm, 63mm |
|
Accuracy |
: 1.6% of Full Scale Value |
|
Ambient temperature |
: - 25 C to + 65 C |
|
Process temperature |
: Max 180°C |
|
Operating pressure |
: 75% of the Scale Value |
|
Over pressure limit |
: 130% of Full Scale Value |
|
| |
|
Case |
: A1S1 304 SS |
|
Ring |
: A1S1 304 SS, Bayonet Type |
|
Bourdon |
: Copper Alloy |
|
Socket |
: Copper Alloy |
|
Movement |
: Copper Alloy |
|
Joints |
: Silver Brazing |
|
| |
|
Protection |
: IP 65 |
|
Dial |
: Aluminium, black graduation on white
background |
|
Pointer |
: Aluminium, black coloured Micrometer zero
adjustable |
|
Window |
: Plexi Glass |
|
Blow off Disc |
: Neoprene |
|
Gasket |
: Neoprene |
|
| |
| Pressure |
|
| SINGLE SCALE (psi) |
|
|
|
|
|
| |
|
