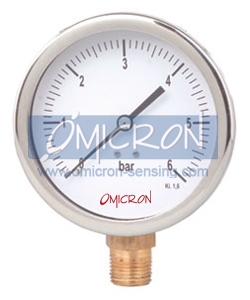

PGSB : Stainless Steel Pressure Gauge with Brass Internals |
|
|
 |
Model |
: PGSB |
|
Type |
: Industrial |
|
Dial Size |
: 1.5" - 10" |
|
Range |
: -760mmHg to 1000 bar |
|
Wetted Parts |
: Copper Alloy |
|
Case |
: SS304 |
|
| |
| Special Features |
|
|
Stainless steel case & measuring system |
|
Socket & case welded |
|
Accuracy upto ±1.0% |
|
| |
| Applications |
|
| Food & beverage, pharmaceutical, cryogenics, chemical 6C petrochemical industries, conventional & nuclear power Plants, pumps, hydro cleaning machines, presses, engine Compressors, turbines, diesel engines & refrigerating plants. |
|
| |
| Specifications |
|
| Standard Version: 40mm, 50mm, 63mm, 100mm, 150mm, 250mm |
|
Accuracy |
: ±1.6% of F.S. for 100mm, 150mm and 250mm
±2.0% of F.S. for 63mm
±2.5% of F.S. for 50mm
- 25°C to + 65°C |
|
Ambient temperature |
: - 25 oC to + 65 oC |
|
Process temperature |
: Max 180 oC |
|
Operating pressure |
: 75% of the Scale Value |
|
Over pressure limit |
: 30% for Pressure Ranges upto 600 kg / cm2 |
| |
|
15% for Pressure Ranges above 600 kg / cm2 |
|
| |
|
Case |
: AISI 304 SS |
|
Ring |
: AISI 304 SS, Bayonet Type |
|
Bourdon |
: Copper Alloy upto 1000 psi {AISI 316SS upto
15000 psi) |
|
Socket |
: Copper Alloy |
|
Movement |
: Copper Alloy |
|
Joints |
: Silver Alloy Brazing |
|
| |
|
Protection |
: IP 65 |
|
Dial |
: Aluminium, black graduation on white
background |
|
Pointer |
: Aluminium, black coloured Micrometer zero
adjustable |
|
Window |
: Sheet Glass |
|
Blow off Disc |
: Neoprene |
|
Gasket |
: Neoprene |
|
| |
| Glycerine Filled Version (Option LG) |
|
Accuracy |
: ±1.6% of F.S. for 100mm, 150mm and 250mm
±2.0% of F.S. for 63mm
±2.5% of F.S. for 50mm |
|
Ambient temperature |
: Maximum 65°C |
|
Process temperature |
: + 15°C / 65°C |
|
Window |
: Flexi Glass |
|
Dampening Liquids |
: Glycerine 98% (others available as option) |
|
Other Features |
: Refer Specification of Standard Version |
|
|
|
|
|
| |
|
