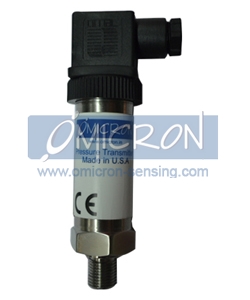

LR1200 : Low Range Pressure Transmitter |
|
|
 |
Model |
: LR1200 |
|
Type |
: Low Pressure |
|
Range |
: 10 to 1000 mbar |
|
Output |
: 4 - 20mA, 0 to 5V, 0.5 to 4.5V, 1 to 5 V, 0 - 10V |
|
Accuracy |
: ± 0.5% of F.S |
|
Temperature Limits |
: -25 to 85ºC |
|
Over Pressure |
: 3X |
|
| |
| Special Features |
|
|
Low Cost OEM |
|
Wide Temperature Range |
|
Crevice Free Stainless Steel Construction |
|
No Seals or O-Rings |
|
Compact Version |
|
Surge Protection, Over Voltage Protection to 16V DC |
|
| |
| Applications |
|
| C3200 OEM Pressure Transmitters with Compact Design are used for various applications in Aviation Industry, Pharmceuticals, Refrigeration and HVAC Controls, Process Control, Motor Fuel Control, Water Pressure Monitoring and High end industrial machinery. |
|
| |
| Specifications |
|
| Standard Version: 50mm, 63mm, 100mm, 150mm, 250mm |
|
Pressure Range |
: -1 Bar ~ 40 Bar |
|
Accuracy |
: ±0.25% |
|
Operating Temp. |
: - 40 oC to 125 oC |
|
Compensated Temp. |
: - 20 oC to 85 oC |
|
Proof Pressre |
: 2X |
|
Burst Pressure |
5X |
|
Input Voltage |
: 12 - 36 VDC |
|
Output |
: 4-20 mA , 0-10V , 0-5V, 0.5-4.5V Ratiometric,
1-5V |
|
|
|
|
|
| |
|
