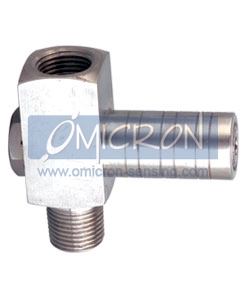

GS : Gauge Saver |
|
|
 |
Type |
: Gauge Saver |
|
Model |
: GC |
|
MOC |
: SS316 |
|
Max Temp |
: 220°C |
|
Max Pressure |
: 1000 Bar |
|
Size |
: 1/4" - 1" |
|
| |
| Special Features |
|
| These are designed to protect pressure instruments from over pressure exceeding the specified pressure range by sudden & excessive pressure fluctuation from surge or spike. This device blocks the higher pressure exceeding the allowed value, until it comes back to normal, when system pressure becomes normal. Hence this device safeguards the pressure instrument gauges, switches or transmitters by blocking extra high pressure. |
|
| |
| Specifications |
|
| Standard Version : EC |
|
Setting Range |
: 1.0 to 400 bar |
|
Reset Value |
: -30% of set value |
|
'0' Ring |
: Viton |
|
Max. Working pressure |
: 500 bar |
|
Operating Temperature |
: -20°C to 200°C |
|
Material of construction |
: AISI316SS |
|
|
|
|
|
| |
|
