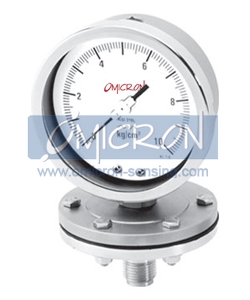

Model |
: PGSD |
|
Type |
: Diaphragm Type |
|
Dial Size |
: 2" - 10" |
|
Range |
: -760mmHg to 1000 bar |
|
Wetted Parts |
: SS316 / Exotic |
|
Case |
: SS304 |
|
| |
| Special Features |
|
|
Stainless steel case |
|
Suitable for gaseous & liquid media |
|
Ranges from -1 to 25 kg/cm2 |
|
Standard followed in general en 837 - 3 |
|
| |
| Applications |
|
| Chemicals / Refinery / Fertilizer / Petrochemicals / Pharmaceutical / Power / Cement / Sugar / Food & Beverages / Pulp & Paper & Allied Process Industries. |
|
| |
| Specifications |
|
| Standard Version: 100mm, 150mm |
|
Accuracy |
: ±1.6% of F.S. |
|
Ambient temperature |
: - 25°C to + 65°C |
|
Process temperature |
: Max 120°C |
|
Operating pressure |
: 75 % of the Range Value |
|
Over pressure limit |
: 130 % of Full Scale |
|
| |
|
Case |
: AISI 304 SS |
|
Ring |
: AISI 304 SS Bayonet Type |
|
Top Chamber |
: AISI 304 SS |
|
Bottom Chamber |
: AISI 31 6 SS |
|
Movement |
: AISI 304 SS |
|
Diaphragm |
: AISI 316L SS |
|
| |
|
Protection |
: IP 65 |
|
Dial |
: Aluminium, black graduation on white
background |
|
Pointer |
: Aluminium, black coloured micrometer zero
adjustable |
|
Window |
: Sheet Glass |
|
Blow off Disc |
: Neoprene |
|
Gasket |
: Neoprene |
|
| |
| All Stainless Steel Test Gauge (Option - YQ) |
|
Accuracy |
: ± 0.5% OF F.S. |
|
Ambient temperature |
: -25°CTO+65°C |
|
Process temperature |
: + 150°C |
|
Bourdon |
: AISI316LSS |
|
Socket |
: AISI 31 6 L SS |
|
Movement |
: AISI 304 SS |
|
Welding |
: Tig Argon Arc Welding |
|
