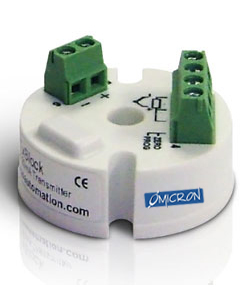

TTx-HMA : Head Mounted Temperature Transmitter |
|
|
 |
Type |
: Temperature Transmitter |
|
Model |
: TTx-HMA |
|
Temperature Range |
: -200 to 1800°C |
|
Accuracy |
: ±0.1% of F.S |
|
Output |
: 4 - 20mA |
|
Power Supply |
: 12 - 36V DC |
|
| |
| Special Features |
|
|
Programmable Input (Pt-100 / Thermocouple / Variable Resistance) |
|
Linear Signal Output |
|
Current Loop Powered |
|
Configuration with a PC via an RS 232 cable |
|
Cold Junction Compenstation for thermocouples |
|
| |
| Applications |
|
| Food & beverage, pharmaceutical, chemical & petrochemical industries, conventional & nuclear plants, pumps, presses, turbines, hydro-cleaning machines, diesel engines & refrigerating plants. |
|
| |
| Specifications |
|
|
Input |
: Thermocouple / RTD / mV |
|
Output |
: 4 - 20 mA, two wire |
|
Accuracy |
: ±0.1% of the calibrated span |
|
Operating Temp. |
: -40°C to 85°C |
|
Calibration |
Configuration with PC via RS232 Cable |
|
ZERO Adjustment |
: ±20% of the range |
|
SPAN Adjustment |
: ±20% of the range |
|
Loop Supply |
: 24V DC nominal (12 to 30)V DC |
|
Loop Resistance |
: 600 Ohm @ 24V DC |
|
Burn Out |
: Upscale for Thermocouple, RTD and R |
|
|
|
|
|
| |
|
