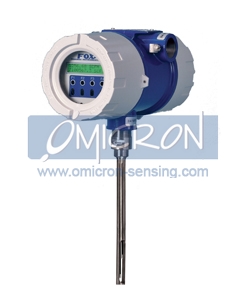

TF100 : Thermal Mass Flowmeter |
|
|
 |
Instrument |
: Flow Transmitter |
|
MOC |
: 25 bar |
|
Max Pressure |
: ±1% of reading±0.5% of F.S |
|
Accuracy |
: 15～36VDC |
|
| |
| Special Features |
|
|
Fast-responsive and double-armoured sensor |
|
Two isolated loop-powered 4～20mA outputs, one for flow rate and one for temperature; optional pulse output for use as flow totalizer |
|
Accuracy : 1%, Turndown :100:1 |
|
Temperature rating: -40～450°C |
|
With LCD as standard configuration and with Magnetic keypad |
|
| |
| Applications |
|
| TF100S series Thermal Mass flow meter uses precision wind tunnel calibration method and can compensate the temperature in 5 levels with the temperature from -40～450°C. The built-in gas conversion coefficient list can be used to correct when the flowmeter is used to measure the non-air gases . The mounting for the meters with the DN15-DN50 is pipe type, and it is insertion type for the upstream pipe when the DN is above 50MM. Except H2, TF100S is suitable to measure the flow rate of various non-adhesion gases. 316L and Alloy C-276 material sensors are optional according to different media. Special software correction technology allows TF100S accuracy to surfer very little effect when suppress the range, this can help customers to reduce the stock amount and change the range in field. |
|
| |
| Specifications |
|
|
Range |
: |
0～60m/s |
|
Accuracy |
: |
±1% of reading±0.5% of F.S |
|
Turndown |
: |
100:1 |
|
Response time |
: |
3 sec., adjustable through damping coefficient |
|
Operating
temperature |
: |
Ambient temperature:-20～70°C,
Media temperature:5 levels-40～125°C, -40～180°C,
-40～260°C, -40～350°C, -40～450°C |
|
Analog outputs |
: |
| Two 4-20mA outputs |
one for flow rate |
| one for temperature |
|
| |
|
|
one 4～20mA output is with HART communication( when signal and power use the same ground wire, isolated gate should be used) |
| |
Digital output |
: |
MODBUS protocol |
| |
Pulse output |
: |
Total flow, value 0.001～100000000Nm, width adjustable 0.02S to 2S 24VDC |
| |
Switch output |
: |
Tow SPDT outputs(relay contact:5A at 250V), variable can be
set up |
| |
Material |
: |
Sensor: optional 316L and Alloy C-276
Sensor support: optional 304 and 316L, Ø19mm
Housing: Aluminium, Epoxy Resin painted
IP protection: IP67
Humidity: 0～100% RH |
| |
Ex-proof |
: |
NEPSI, EX d II CT4, isolated class C |
| |
Display/operation |
: |
LCD rate & total adjustment via magnetic wand |
| |
Power supply |
: |
15～36VDC |
|
|
|
|
|
|
| |
|
