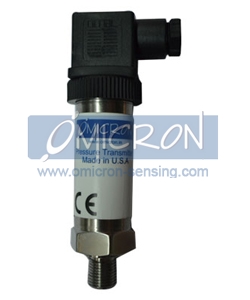

S3300 : Hydrostatic Level Transmitter |
|
|
 |
Type |
: Hydrostatic Level Transmitter |
|
Model |
: S3300 |
|
Accuracy |
: 0.25% of FS; 0.5% of FS |
|
Protection |
: IP65 |
|
Range |
: 0 - 1000m |
|
Output |
: 4-20mA, 0-5V, 0.5-4.5V, 0 - 10V |
|
| |
| Description |
|
| S3300 series standard level transmitter design with consummate encapsulation technology, the perfect assembly process insure the quality and performance of this series with high stability, high accuracy, leakage proof. |
|
| |
| Application |
|
| It can be used for liquid measuring for petroleum, metallurgy, hydraulic, city water supply, sewage treatment, hygrometry and etc. |
|
| |
| Specifications |
|
|
Pressure range |
: 0 ~ 1mH2O~100mH2O |
|
Overload |
: 150%FS |
|
Output |
: 4-20mA, 0-5V.0.5-4.5V |
|
Power supply |
: 12-36VDC |
|
Combine error |
: 0.25%FS; 0.5% FSO
(Including Linearity, Repeatability & Hysteresis) |
|
Long term stability |
: ± 0.2%FS/year |
|
Repeatability |
: ±0.2%FSO |
|
Response time |
: <10ms |
|
Pressure connection |
: screw thread , throw-in type |
|
Temp. compensation |
: 0°C~65°C |
|
Operating temp. |
: 0'C~85°C |
|
Protection grade |
: IP68 |
|
|
|
|
|
| |
|
