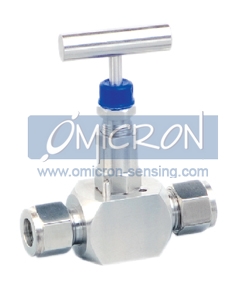

NV2 : Needle Valve |
|
|
 |
Model |
: Needle Valve |
|
MOC |
: AISI SS316 / AISI SS304 / Exotic Material |
|
Temp Lmiit |
: 250°C |
|
Pressure Limit |
: 15000 psi |
|
No. of Valves |
: 1 |
|
Design |
: R Type |
|
| |
| Description |
|
| Type angle pattern needle valve designed for use in on general applications requiring complete isolation or throttling of the media. Ideal for use on gas services and some liquid applications. Produce as standard angle body at 90 degrees. Angle body 45 degrees optional. Specially designed soft Delrin needle tip (type DS) rolled in to the stem assembly in perfect location for positive bubble tight shut-off. Available with end connections in sizes from 1/4" to1/2" and a wide choice of female screwed, male to female screwed or socket weld. |
|
| |
| Applications |
|
|
Instrument Line Shut Off. |
|
Instrument And Gauge Isolation. |
|
Drain Valve. |
|
Specially Designed For Gas Service. |
|
| |
| Specifications |
|
|
Pressure |
: 400 bar |
|
Max Temp. |
: 100 °C |
|
Material |
: Stainless Steel |
|
Stem |
: (Type DS) Delrin Soft Needle Tip
Rolled Into The Needle |
|
Gland Packing |
: PTFE |
|
Stem Packing Area |
: Burnished mirror finish for Smooth
valve operation. |
|
Safety |
: Back seating for preventing stem
blowout. |
|
|
|
|
|
| |
|
