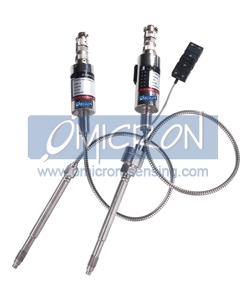

M1200 : Melt Pressure Transmitter |
|
|
 |
Model |
: M1200 |
|
Type |
: Melt Pressure |
|
Range |
: 0 to 2000 bar |
|
Output |
: 4 - 20mA, 0 - 10V |
|
Accuracy |
: ± 0.5% of F.S |
|
Temperature Limits |
: -40 to 350ºC |
|
Over Pressure |
: 2X |
|
| |
| Description |
|
| M1200 Series Economic melt Pressure Transducer designed for economic applications. The model M1200 and M1200T is with thermocouple, which can measure the pressure and temperature at one point. This series can be used together with the PVI Series Intelligent Digital Pressure Instrument of Omicron or other brand instrumentation. Zero & full span can be adjustable, with amplify signal can be connected with PLC. With the advantage of high precision and reliable pressure measuring and good quality, internal 80% calibration and etc. |
|
| |
| Applications |
|
| It can be widely used in various plastic extrusion line for pressure measuring and control, such as chemical fibre manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical. |
|
| |
| Specifications |
|
|
Pressure Range |
: 0-3.5MPa--0-150MPa
(0-500psi---0-30000psi) |
|
Over Pressure |
: 1.5 X FSO |
|
Combined Error |
: ± 1.0% FSO, ± 1.5% FSO
(Including Linearity, Repeatability &
Hysteresis) |
|
Output |
: 3.33 mV/V, 2mV/V; 4-20mA, 0-10V,
0-5V |
|
Input Voltage |
: 10VDC; 24VDC |
|
Repeatability |
+/- 0.2% FSO |
|
Bridge Resistance |
: Input: 345 Ohms minimum
Output: 350 Ohms +/- 10% |
|
Internal Shunt Calibration (R-Cal) |
: 80% FSO +/- 1% |
|
Insulation Resistance |
: 200 megohms @ 100 Vdc |
|
Max Diaphragm Temperature |
: 400oC |
|
Mounting Torque |
: 500 inch/lbs, maximum |
|
Standard Wetted Parts |
: Diaphragm coated 15-5 PH SST |
|
Thermocouple type |
: J, K, E, PT100
( PT124B-111T, PT124B-121T) |
|
Electrical connector |
: 5PIN connector |
|
Process connector |
: M14x1.5, M18 x 1.5 Optional |
|
|
|
|
|
| |
|
