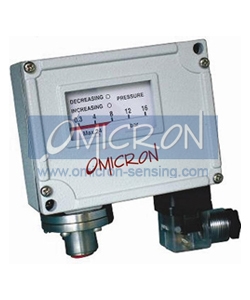

IPS : Industrial Pressure Switch |
|
|
 |
Type |
: Industrial |
|
Model |
: IPS |
|
Wetted Parts |
: SS316 |
|
Enclosure |
: Die Cast Aluminium |
|
Range |
: -760mmHg to 600 bar |
|
Repeatability |
: ±1% of F.S |
|
| |
| Special Features |
|
|
Field Adjustable |
|
Stainless Steel Wetted Parts |
|
Snap Action Microswitch |
|
| |
| Applications |
|
| Food & beverage, pharmaceutical, cryogenics, chemical & petrochemical industries, conventional & nuclear power Plants, pumps, hydro-cleaning machines, presses, engine Compressors, turbines, diesel engines & refrigerating plants. |
|
| |
| Specifications |
|
|
Sensor |
: AISI 316SS Diaphragm |
|
Wetted Parts |
: AISI 304SS |
 |
Enclosure |
: Diecast Aluminium; Weatherproof to
IP 66 |
|
Ambient temperature |
: - 20 °C to + 70 °C |
|
Process temperature |
: Max 150 °C |
|
Operating pressure |
: 75% of the Scale Value |
|
Process Media |
: Air, Oil and Water |
|
| |
|
Scale Accuracy |
: ±5% of F.S.R |
|
Repeatability |
: ±1% of F.S.R |
|
Differential |
: Field Adjustable |
|
Switch |
: 1 SPDT Contact System |
|
Mounting |
: Direct / Panel |
|
Process Connection |
: 3/8” BSP (M) |
|
Contact Rating |
: 15A 110 / 220 VAC, 10A 24V DC res. |
|
Switch |
: Snap Action Microswitch |
|
|
|
|
|
| |
|
