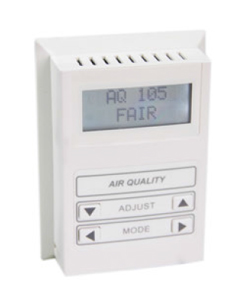

IAQ-1002 : Indoor Air Quality Transmitter |
|
|
 |
Parameter |
: O2 |
|
Mounting |
: Wall |
|
Range |
: 0 to 25% |
|
Display |
: Optional |
|
Accuracy |
: ± 2% of F.S |
|
Output |
: 4 - 20mA
: 0 - 10VDC |
|
| |
| Special Features |
|
|
High Sensitivity to VOCs and Odorous Gases |
|
High Impact Plastic Enclosure provides Durability in Commercial Environments |
|
Low Energy Consumption |
|
Back-lit LCD Display |
|
Temperature and Humidity readings all in one |
|
RS485 Network connection, Modbus RTU at 19.2k and 9600 baud |
|
Three transducer outputs, 4-20mA, 0-5V or 0-10V selectable |
|
| |
| Application |
|
| This full-featured CPU based device is ideal for the detection of Air
Contami-nants. In residential and commercial environment, Omicron's IAQ
Sensor has high sensitivity to VOCs and odorous gases. This unit comes
with an LCD display with back lighting for easy viewing. It comes standard
with humid-ity and temperature reading capabilities, which are vital when
managing air quality control, and with the manual jumper output selection,
your readings have never been more precise. |
|
| |
| Specifications |
|
|
Operating temperature |
: -30~70°C (-22~158°F) |
|
Supply Voltage |
: 12~24Vac±20%, 50~60Hz |
| |
|
: 12~24Vdc±20%, 50~60Hz |
|
12~24Vdc±20%, 50~60Hz |
55mA @ 24Vdc |
|
Ambient Humidity Range |
: 0~100%RH |
|
Humidity Sensor Module |
: Omicron HUM-M2 |
|
Air Quality Sensor Element |
: Figaro TGS2600 |
| |
|
Figaro TGS2602 |
|
Material, Enclosure |
: Flame Proof Plastic |
|
Enclosure Rating |
: IP31 |
|
Temperature Sensor |
: 10K thermistor ±0.5OC |
|
Color |
: White / Off-white |
|
Weight |
: 200g |
|
|
|
|
|
| |
|
