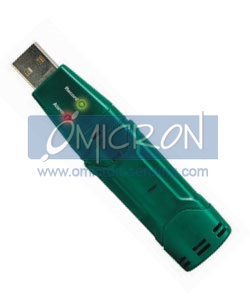

HDD302 : RH / Temperature Datalogger |
|
|
 |
Model |
: HDD302 |
|
Parameters |
: RH / Temperature |
|
Display |
: NIL |
|
Samples |
: 32000 |
|
Connection |
: USB |
|
Accuracy |
: ± 2% RH / ± 1°C |
|
| |
| Special Features |
|
|
Datalogs 32,000 readings (16,000 for each parameter: Humidity/Temperature) |
|
Dew point indication via Windows® software (included) |
|
RHT10-SW optional software to calculate Grains per Pound (grams per kilogram) to 1120GPP (160g/kg) |
|
Selectable data sampling rate: 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, 24hr |
|
User-programmable alarm thresholds for RH and Temperature |
|
Status Indication via Red/Yellow LED and Green LED |
|
Long battery life (approx. 1 year) |
|
.Complete with 3.6V Lithium battery and Windows® 98, 2000, XP,Vista, 7, and 8 compatible analysis software |
|
| |
| Applications |
|
|
Records up to 16,000 readings for each parameter |
|
Datalogs 16,000 Humidity and 16,000 Temperature readings with a user programmable sample rate |
|
|
| |
| Specifications |
|
| Relative Humidity |
| |
| Specifications |
Range |
Resolution |
Accuracy (%rdg+digits) |
| Temperature |
-40 to 158°F |
0.1°F/°C |
±1.8°F (14 to 104°F) |
| |
±3.6°F (-40 to +14 and 104 to 158°F) |
| ±1.0°C (-10 to 40°C) |
| ±2.0°C (-40 to -10 and +40 to 70°C) |
| |
| Humidity |
0 to 100%RH |
0.1%RH |
±3%RH |
| |
| Datalogging interval |
2 seconds to 24 hours |
| |
| Memory |
Temperature: 16,000 points; Relative Humidity: 16,000 points |
| |
| Dimensions |
5.1 x 1.1 x 0.98" (130 x 30 x 25mm) |
| |
| Weight |
1oz (20g) |
|
|
|
|
|
|
| |
|
