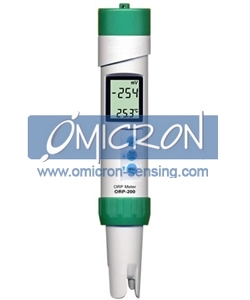

8022 : ORP Meter |
|
|
 |
Model |
: 8022 |
|
Parameters |
: ORP |
|
Range |
: -1200 to 1200 mV |
|
Accuracy |
: 2mV |
|
Display |
: LCD |
|
Power |
: LR44 x 4 Batteries |
|
| |
| Features |
|
|
Easy to change the electrode. |
|
Pen type ORP meter, all in one, ORP electrode is included, easy for general purpose application. |
|
Water proof and protection. |
|
Build in temperature sensor, ATC (auto temperature compensation). |
|
Auto calibration for 0 mV, 500mV |
|
Temperature measurement |
|
Available for wide applications, such as aquarium, beverage, fish hatcheries, food processing, photography, laboratory, quality control, school & colleges, swimming pools, water conditions. |
|
LCD with two displays and low battery indicator. |
|
Data hold function for freezing the desired value. |
|
Auto power off without any operations after 20 mins. |
|
Microcomputer circuit, intelligent function, high accuracy. |
|
Compact size, light weight. |
|
Power supply by DC 1.5 V battery (LR44, BAT ) x 4 PCs |
|
| |
| Specifications |
|
|
Display |
: LCD, size : 20 mm x 27 mm. Consumption |
|
Measurement Range |
: -1200mV ~ +1200mV |
|
Accuracy |
: ±2mV |
|
Data Hold |
: Freeze the display reading. |
|
mV Calibration |
: 0 mV and 500 mV calibration ensure the best
linearity and accuracy. |
|
Operating Humidity |
: Less than 80% RH. |
|
Dimension |
: 188 x38mm |
|
Power off |
: Auto power shut off to save battery life. |
|
Weight |
: 120 g (included electrode). |
|
|
|
|
|
|
| |
|
