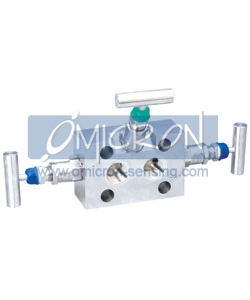

3VM : Manifold Valve |
|
|
 |
Model |
: 3 Valve |
|
MOC |
: AISI SS316 / AISI SS304 / Exotic Material |
|
Temp Lmiit |
: 250°C |
|
Pressure Limit |
: 6000 psi |
|
No. of Valves |
: 3 |
|
Design |
: R / H / T Type |
|
| |
| Special Features |
|
Threaded Vertical Port Inlet and Outlets |
|
Isolation Bonnet on the sides, Equalizing Bonnet on the front.
|
|
Available in Exotic Materials
. |
|
| |
| Applications |
| 3 valve manifolds are designed for connecting system impulse lines and transmitters. These manifolds are rugged in construction to withstagh pressures and temperatures. The manifolds are rated for pressures as high as 6000 PSI at 200°F or 4000 PSI at 500°F with PTFE Packing. For a Higher Temperatures Grafoil Packing is used |
| |
| Specifications |
|
|
Body |
: SS316 |
|
Stem |
: SS316 |
|
Valve Assembly |
: SS316 |
|
T bar Handle |
: SS304 |
|
Maximum Working
Pressure |
: 6000 psi (Not Available In Series 3VMN) |
|
Maximum Working
Temperature |
: 240°C |
|
Packing |
: PTFE (Grafoil For Temperature Above 240°C To
550°C) |
|
Type Of Stem |
: Type CT; Stem With Conical Metal Tip |
|
Drain Port |
: 1/4" NPT [F]; Provided With SS 316 Plug
(Not Available In Series 3VMN) |
|
Hard Chrome Plating |
: Provided On Stem Tip . |
|
|
|
|
|
| |
|
